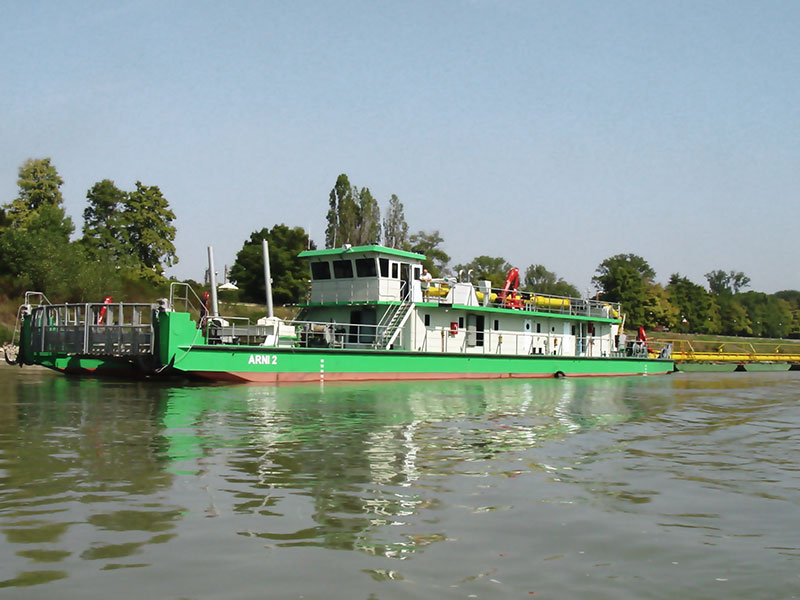

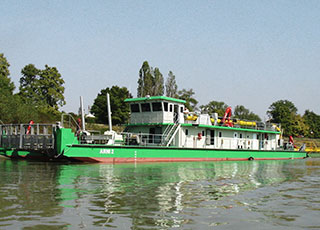

Motor dredge “Arni 2”

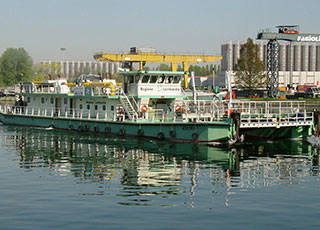

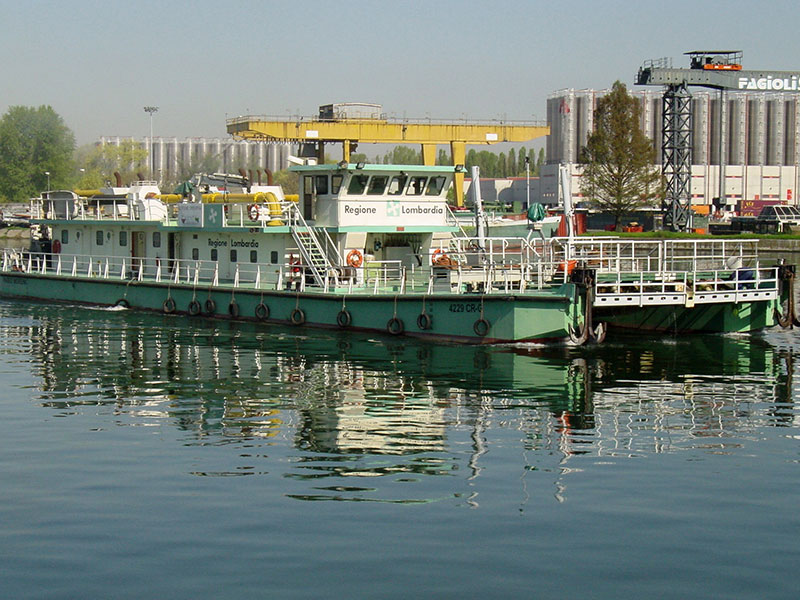

Motor dredge “Fabio Moreni”
The dustpan dredgers “Arni2” and “Fabio Moreni” fulfill the task of keeping the optimal condition of navigation ability on Po River.
Dustpan motor dredger in operation
They have excavating potential of moving approx 5000 cu m/h of mix. The rapidity of interventions increases thanks to the navigation speed of the motor dredgers, in average 9 knots. The dredging system includes tools for controlling of the fuel consumption and quantity of inert being moved; this offers precise indications for the evaluation of the management costs.
Dustpan motor dredger in operation
All maneuver and dredging operations are commanded from the panel where all alarms and control panels for diesel engines are present. The motor dredgers, under RINA class, have quarters with toilets for 6 people, mess and kitchen.

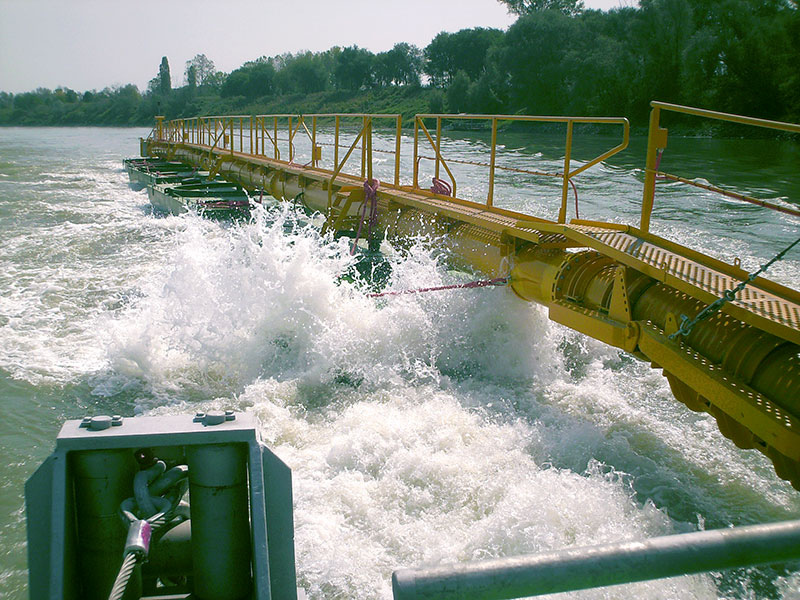

The outlet piping, settled on little rafts, is equipped with a special deflector steered from the panel; this allows the mix jet to be deviated out of the zone of ships transit.
Click on images to enlarge
Suction box with water-jet system

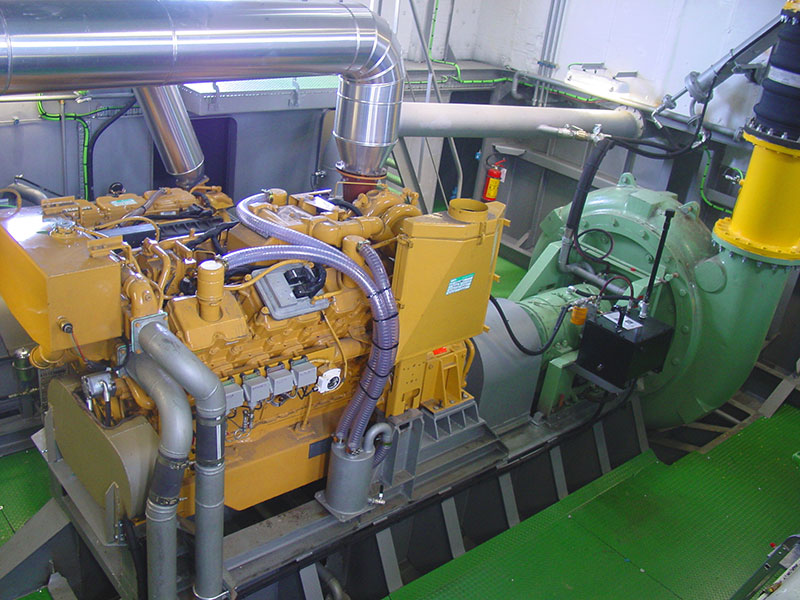

Dredging group, caterpillar-ihc
Drain pipe with swivel joint
9 knots speed
| Image | Name | Year | Length | Width | Height | Mix capacity | Dredging pump | Test |
|---|---|---|---|---|---|---|---|---|
 |
Arni 2 | 2007 | 42 m | 11 m | 1,8 m | 5.600 mc/h | 24/22" | RINA |
 |
Fabio Moreni | 1997 | 47 m | 11 m | 2 m | 6.500 mc/h | 2 da 18/16" | RINA |
Click on images to enlarge
